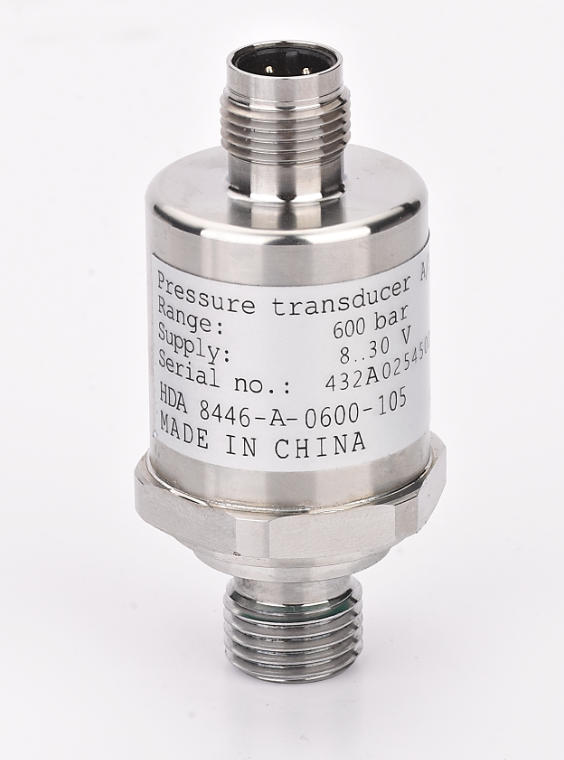

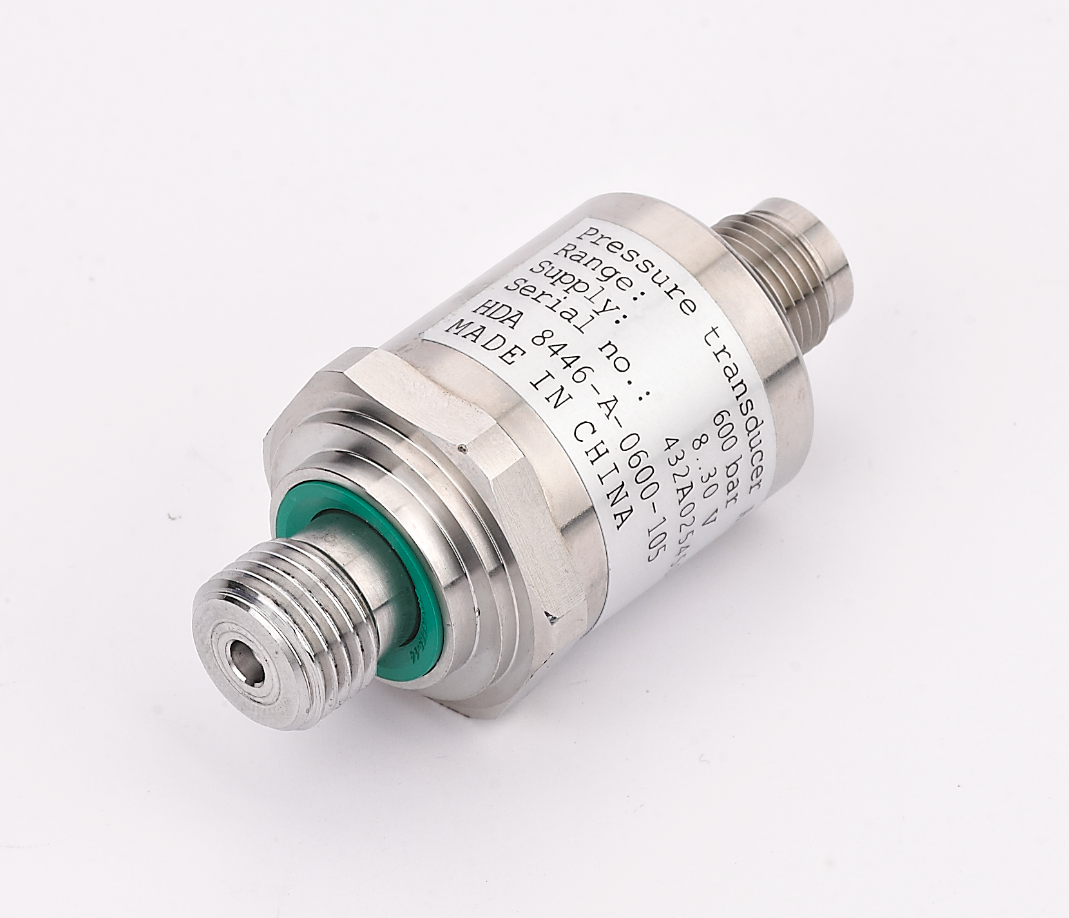

PT600氢能源压力变送器

PT600 Hydrogen Energy Pressure Transmitter

l 产品特点  Product Features

1、专为氢能应用而设计，材料选择和结构设计均经过全面考量，具有优异的抗氢脆性、防氢渗透性能以及防爆安全特性。

Developed specifically for hydrogen energy applications with comprehensive considerations in material selection and structural design, delivering outstanding resistance to hydrogen embrittlement, hydrogen permeation prevention and intrinsic explosion-proof safety performance.

2、采用玻璃微熔技术和一体化结构设计，具有优异的密封性、抗过载和抗爆性能，以及出色的长期稳定性和更长的使用寿命。

Adopts glass micro-melt technology and integrated structural design, featuring superior tightness, overload resistance and burst resistance, together with excellent long-term stability and extended service life.

3、内部无橡胶密封件，可有效避免密封件腐蚀及老化问题。

Free of internal rubber seals to effectively eliminate failures caused by seal corrosion and ageing.

4、配备进口传感器芯片，具有高灵敏度和卓越的可靠性。

Equipped with imported sensor chips for high sensitivity and exceptional reliability

5、精密电路设计提供了出色的抗干扰能力。

Precision circuit design delivers excellent anti-interference capability.

6、电脑修正线性和温度补偿，严格的老化测试，确保产品精度和长期稳定性。

Calibrated for linearity and temperature compensation via computer-assisted adjustment, coupled with rigorous ageing tests to guarantee consistent measurement accuracy and long-term operational stability.

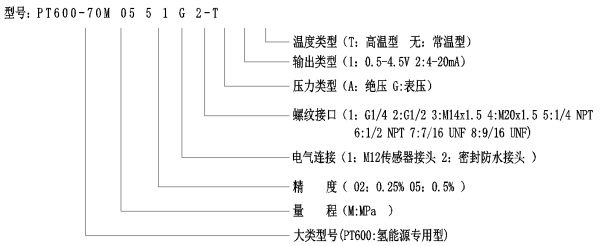

l 选型编码定义 Model Code Definition

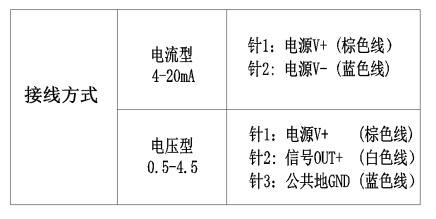

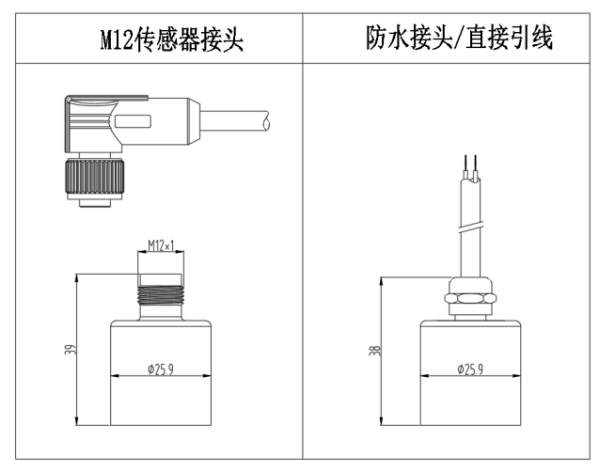

l 电气接口 Electrical Connection

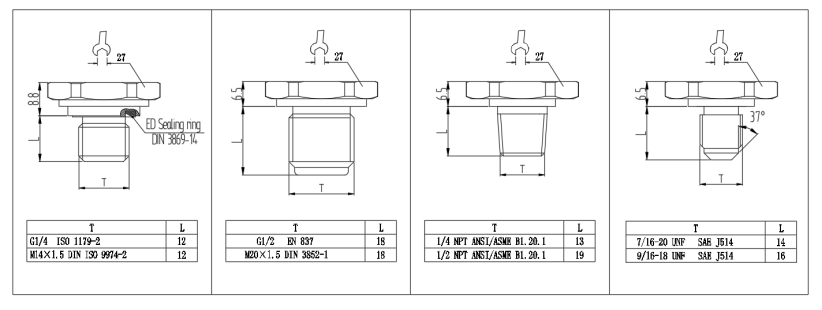

l 压力接口 Pressure Connection

l 主要参数 Technical Specifications
