PT400

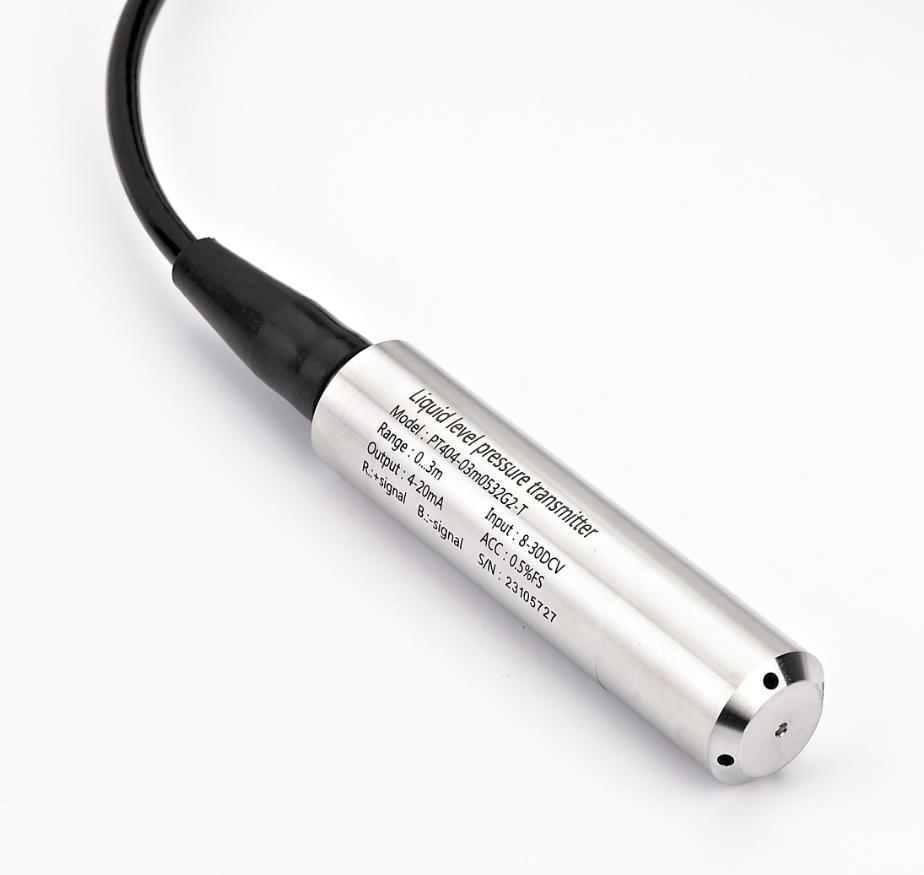

The liquid level pressure transmitter supplied by Huaxi is designed specifically for liquid level measurement, using high-precision sensor elements and stainless steel shell, with excellent corrosion resistance and waterproof performance. It's suitable for various liquid environments, providing stable and reliable data output. Its sturdy structure ensures long-term durability. It can significantly improve the efficiency and accuracy of liquid level monitoring, it's an ideal choice for industrial and environmental applications.

Liquid Level Pressure Transmitter Features

1. Specially designed for measuring liquid level directly into liquid, moisture-proof, freeze-proof and lightning-proof
2. Adopt imported high- precision diffused silicon pressure sensor

3. After digitied the signal, corrected the linear and the temperature drift compensation by computer and tested by aging facility, the output precision and long stability be guaranteed.

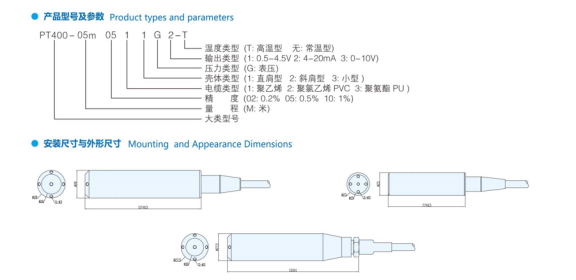

Temperature type (T: high temperature type N: normal temperature type)
Output type (1: 0.5-4.5V 2: 4-20mA 3: 0-10V)
Pressure type (G: gauge pressure)
Case type (1: straight shoulder type 2: oblique shoulder type 3: small type)
Cable type (1: Polyethylene 2: Polyvinyl chloride PVC 3: Polyurethane PU)
Accuracy (02: 0.2% 05: 0.5% 10: 1%)
Range (M: meter)

Large type
